EForm

eForm is the digital enrollment system for the USDA Child and Adult Care Food Program (CACFP). It handles the two federally required forms that must be collected before a child can receive subsidized meals — at both center-based daycares (CX) and home-based providers (HX).

Form	Full Name	Purpose
EF	Enrollment Form	Child demographics, guardian contact info, attendance schedule, parent consent
IEF	Income Eligibility Form	Household income and government assistance — determines the meal benefit tier (Free, Reduced, Paid)

Both forms follow a multi-stage approval pipeline: parent fills and signs → site reviews → sponsor approves → system generates enrollment records.

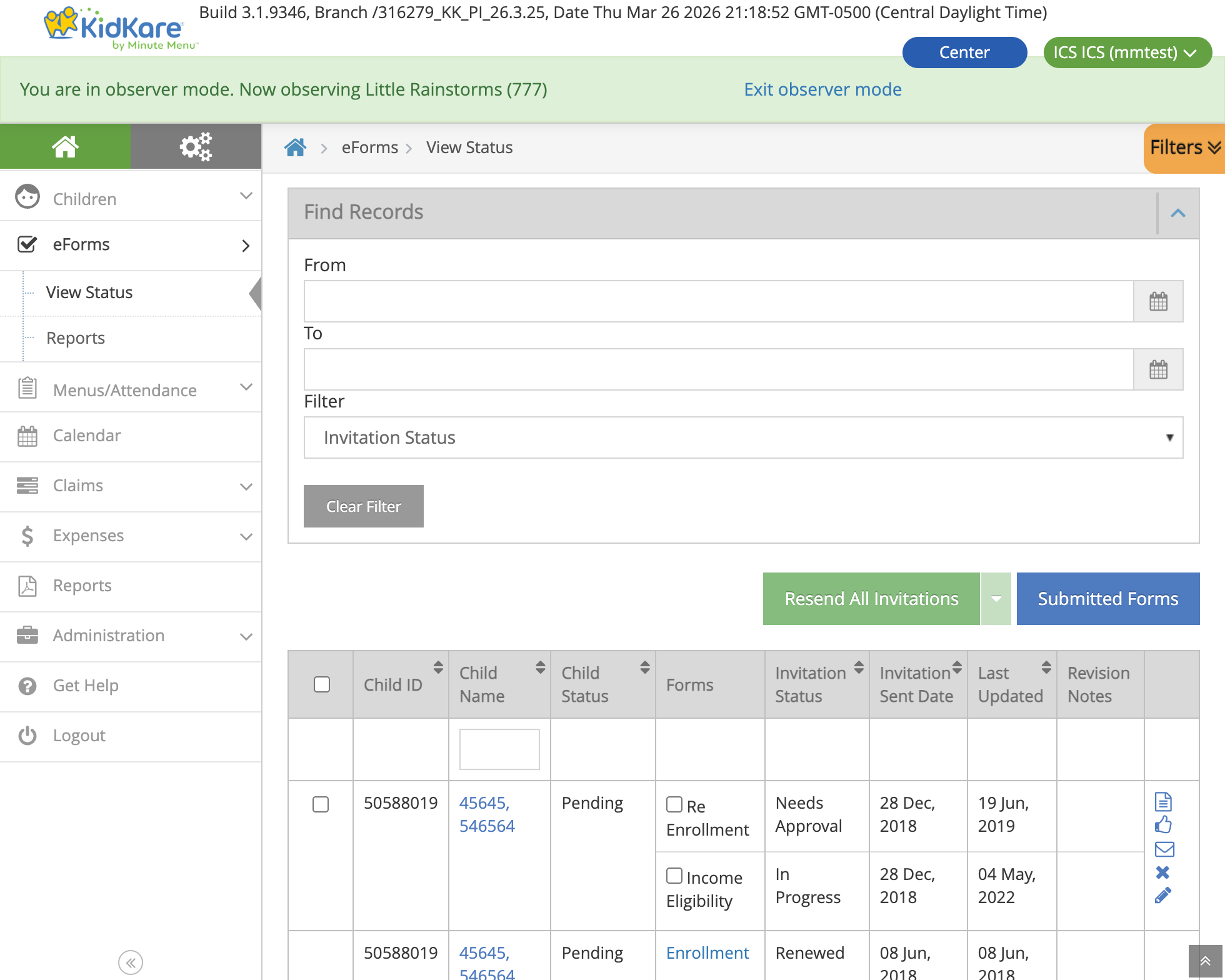

eForms View Status — center-level invitation list showing form statuses and actions

View Status page inside a center. Each row shows a child's EF and IEF with their current status and available actions.

Two Systems: CX (Centers) and HX (Homes)

eForm serves two different provider types through the same KK platform. The form flow is the same, but the underlying data and business logic differ.

graph TB
    KK["KidKare Platform<br/>(shared enrollment wizard)"]

    subgraph "CX Path (Centers)"
        CX_ADMIN["Center Admin<br/>creates invitation"]
        CX_BLL["CxEnrollmentBll"]
        CX_DB[(CXADMIN<br/>SQL Server)]
    end

    subgraph "HX Path (Home Providers)"
        HX_PROVIDER["Home Provider<br/>creates invitation"]
        HX_BLL["HxEnrollmentBll"]
        HX_DB[(MMADMIN_XXX<br/>SQL Server)]
    end

    EFORM[(MMADMIN_EFORM<br/>Shared form storage)]

    KK --> CX_ADMIN
    KK --> HX_PROVIDER
    CX_ADMIN --> CX_BLL --> CX_DB
    HX_PROVIDER --> HX_BLL --> HX_DB
    CX_BLL --> EFORM
    HX_BLL --> EFORM

Key Differences

Aspect	CX (Centers)	HX (Home Providers)
Who creates invitations	Center Admin or Sponsor	Home Provider
Child data stored in	CXADMIN database (SQL Server)	MMADMIN_XXX database (SQL Server)
Form data stored in	MMADMIN_EFORM (shared)	MMADMIN_EFORM (shared)
Assignment table	`KK_EnrollmentAssignmentCx`	`KK_EnrollmentAssignmentHx`
Guardian matching	Direct `guardian_id` foreign key	Name + address + zip code match (no direct FK)
Sibling sync procedure	`sp_copy_childInfo_to_siblings`	`sp_copy_hx_childInfo_to_siblings`
Business logic class	`CxEnrollmentBll` (extends `EnrollmentBll`)	`HxEnrollmentBll` (extends `EnrollmentBll`)
Sponsor approval flow	Center approves first, then sponsor	Provider submits directly to sponsor
Oversight tab	CX child oversight in KK (`cx-child-oversight.component.ts`)	Not applicable (home providers manage directly)

The shared base class EnrollmentBll handles common logic. System-specific behavior is implemented via abstract methods overridden in CxEnrollmentBll and HxEnrollmentBll.

Repos Involved

graph LR
    subgraph "Frontend"
        KK_WEB["KK Web<br/>(AngularJS wizard)"]
    end

    subgraph "Backend"
        KK_API["KK API<br/>(EnrollmentBll +<br/>state machine)"]
    end

    subgraph "CX System"
        CX["Centers-CX<br/>(sponsor-level<br/>operations)"]
    end

    subgraph "Databases"
        EFORM[(MMADMIN_EFORM<br/>EF + IEF forms)]
        CXADMIN[(CXADMIN<br/>CX child records,<br/>income data)]
        MMADMIN[(MMADMIN_XXX<br/>HX child records,<br/>income data)]
    end

    KK_WEB --> KK_API
    KK_API --> EFORM
    KK_API --> CXADMIN
    KK_API --> MMADMIN
    CX --> CXADMIN
    CX --> EFORM

Repo	Role
KK	Frontend enrollment wizard (AngularJS), API controller (`EnrollmentController`), business logic (`EnrollmentBll`, `CxEnrollmentBll`, `HxEnrollmentBll`), state machine, sibling IEF sync, invitation processing
Centers-CX	Sponsor-level operations — IEF save/retrieve (`IefService`, `IefAdapter`), child enrollment service, renewals
MinuteMenu.Database	Schema and stored procedures: MMADMIN_EFORM (form tables), CXADMIN (CX child income, sibling copy), MMADMIN_XXX (HX child income, sibling copy)

Enrollment Scenarios

Three scenarios determine which forms are required:

graph LR
    FTE["First-Time Enrollment<br/>(new child)"] -->|"EF + IEF"| BOTH["Both Forms"]
    RE["Re-Enrollment<br/>(expired/withdrawn)"] -->|"EF + IEF"| BOTH
    IEF_ONLY["IEF Renewal<br/>(income recertification)"] -->|"IEF only"| IEF["IEF Only"]

When both forms are required, the EF is always completed first, then the IEF. Each form's status is tracked independently.

User Roles

┌──────────────────────────────────────────────────────────────────────┐
│                         APPROVAL CHAIN                               │
│                                                                      │
│   CX: CENTER ADMIN        PARENT/GUARDIAN        SPONSOR             │
│   HX: HOME PROVIDER       ───────────────        ──────────         │
│   ──────────────────                                                 │
│   • Creates invitation     • Receives email       • Reviews forms    │
│   • Can fill forms on      • Creates KK account   • Approves or      │
│     behalf of parent       • Fills EF + IEF         sends back       │
│   • Reviews & approves     • Signs electronically • Triggers renewal │
│   • Manages invitations    • Views form status                       │
│                                                                      │
│   STATE OBSERVER                                                     │
│   ──────────────                                                     │
│   • Read-only access to all forms                                    │
│   • Cannot take actions                                              │
└──────────────────────────────────────────────────────────────────────┘

CX vs HX approval flow:

CX: Center Admin creates invitation → Parent fills → Center Admin reviews → Sponsor approves
HX: Home Provider creates invitation → Parent fills → Provider submits → Sponsor approves

The Center Admin (CX) or Home Provider (HX) can also fill forms on behalf of the parent. This is the most common flow when the site handles paperwork directly.

Sponsor Observer Mode — Sponsors can enter any center to manage eForms on behalf of the center admin:

Observer Mode — sponsor selects a center to observe

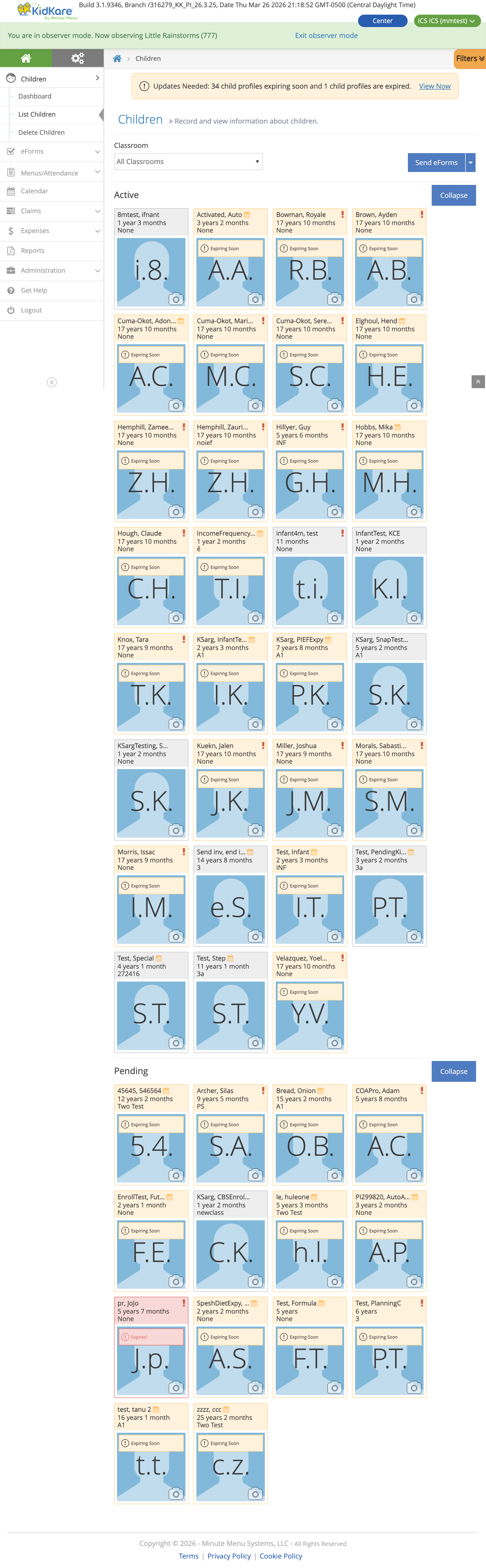

Children List inside a center shows enrollment status and expiration alerts:

Children list with enrollment status and expiration alerts

End-to-End Flow

graph TD
    A["Center Admin (CX) or<br/>Home Provider (HX)<br/>creates invitation"] --> B["Child created<br/>(status: Enrollment Incomplete)"]

    B --> C{"Who fills<br/>the form?"}
    C -->|"Site fills<br/>on behalf of parent"| D["Staff opens form<br/>from View Status"]
    C -->|"Parent fills"| E["Parent receives email<br/>→ creates KK account<br/>→ opens form"]

    D --> F["DOB Verification Dialog<br/>(prevents unauthorized access)"]
    E --> F

    F --> G["Load invitation data<br/>+ site config"]

    G --> EF

    subgraph EF ["Enrollment Form (EF)"]
        direction TB
        EF1["1. Child Info<br/>Name, DOB, sex, race, ethnicity"]
        EF2["2. Infant Details<br/>(only if age < 12 months)"]
        EF3["3. Guardian Info<br/>Name, phones, email, address"]
        EF4["4. Attendance<br/>Days in care, drop-off/pick-up, meals"]
        EF5["5. Review & Sign<br/>Summary + electronic signature"]
        EF1 --> EF2 --> EF3 --> EF4 --> EF5
    end

    EF --> EF_SUB["Submit EF → Needs Approval"]

    EF_SUB --> IEF_CHECK{"IEF<br/>required?"}
    IEF_CHECK -->|No| DONE
    IEF_CHECK -->|Yes| SIB_CHECK

    SIB_CHECK{"Siblings with<br/>same guardian<br/>detected?"}
    SIB_CHECK -->|No| IEF
    SIB_CHECK -->|Yes| CHOOSE["Choose IEF screen:<br/>Use existing sibling IEF<br/>or fill new?"]

    CHOOSE -->|"Use existing"| PREFILL["Prefill from sibling<br/>(read-only income)"]
    CHOOSE -->|"New form"| IEF

    PREFILL --> IEF_SIGN["IEF Step 3: Sign"]

    subgraph IEF ["Income Eligibility Form (IEF)"]
        direction TB
        IEF1["1. Programs<br/>SNAP, TANF, FDPIR, Other"]
        IEF2["2. Household Members<br/>Names, income, frequency, SSN"]
        IEF3["3. Certification & Sign<br/>Legal statements + signature"]
        IEF1 --> IEF2 --> IEF3
    end

    IEF_SIGN --> IEF_SUB
    IEF --> IEF_SUB["Submit IEF → Needs Approval"]
    IEF_SUB --> DONE["View Status page"]

    DONE --> APPROVE

    subgraph APPROVE ["Approval Pipeline"]
        direction TB
        AP1["CX: Center reviews & approves<br/>HX: Provider submits"]
        AP2["Sponsor reviews & approves<br/>(or sends back for revision)"]
        AP3["Renewal processing<br/>(sets enrollment + expiration dates)"]
        AP1 --> AP2 --> AP3
    end

    APPROVE --> COMPLETE["Child enrolled<br/>Eligible for meal reimbursement"]

    style EF fill:#e3f2fd
    style IEF fill:#f3e5f5
    style APPROVE fill:#e8f5e9
    style CHOOSE fill:#fff3e0

Sponsor-level eForms — Sponsors see invitation counts per center and can approve/renew forms in bulk:

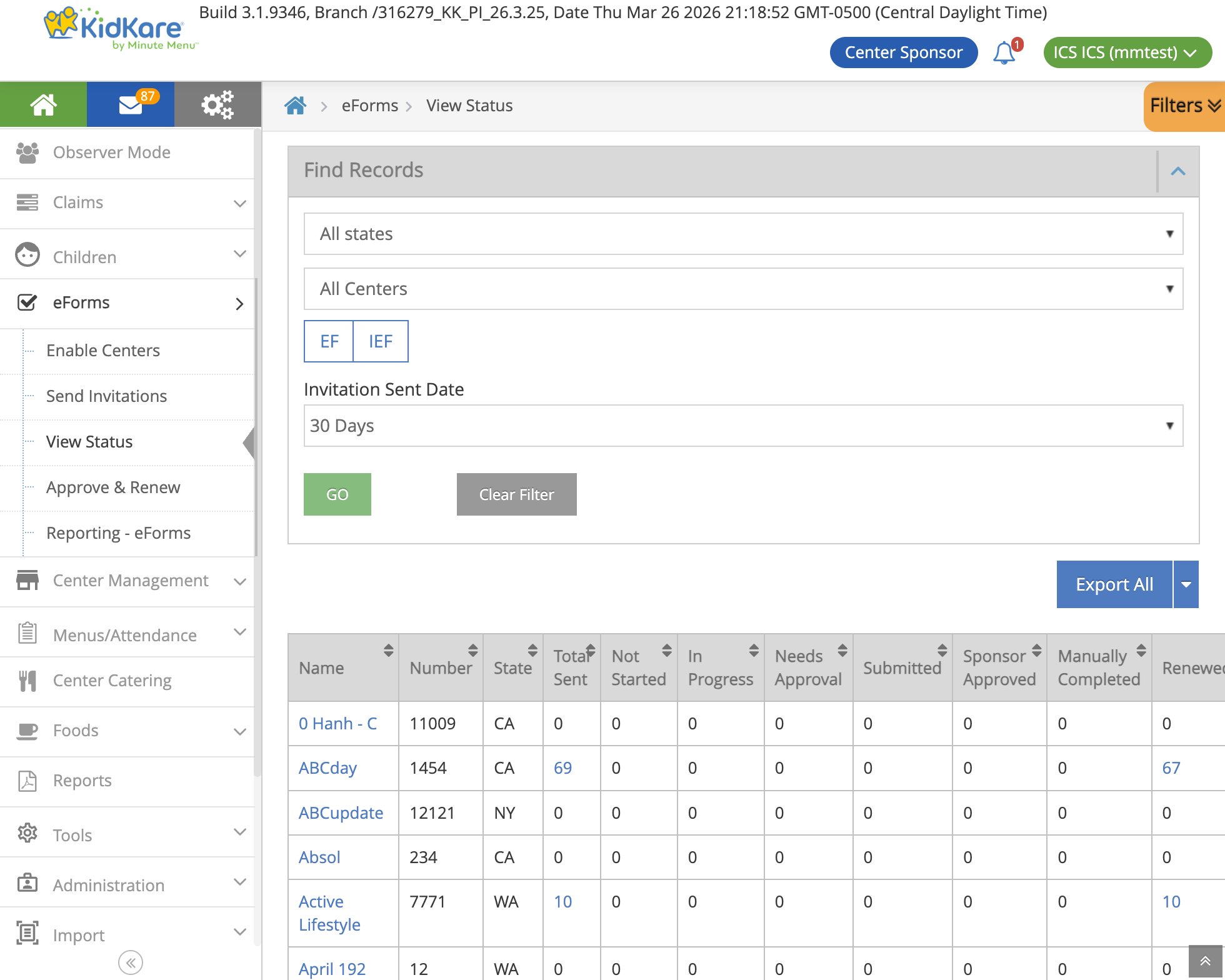

Sponsor View Status — invitation counts per center

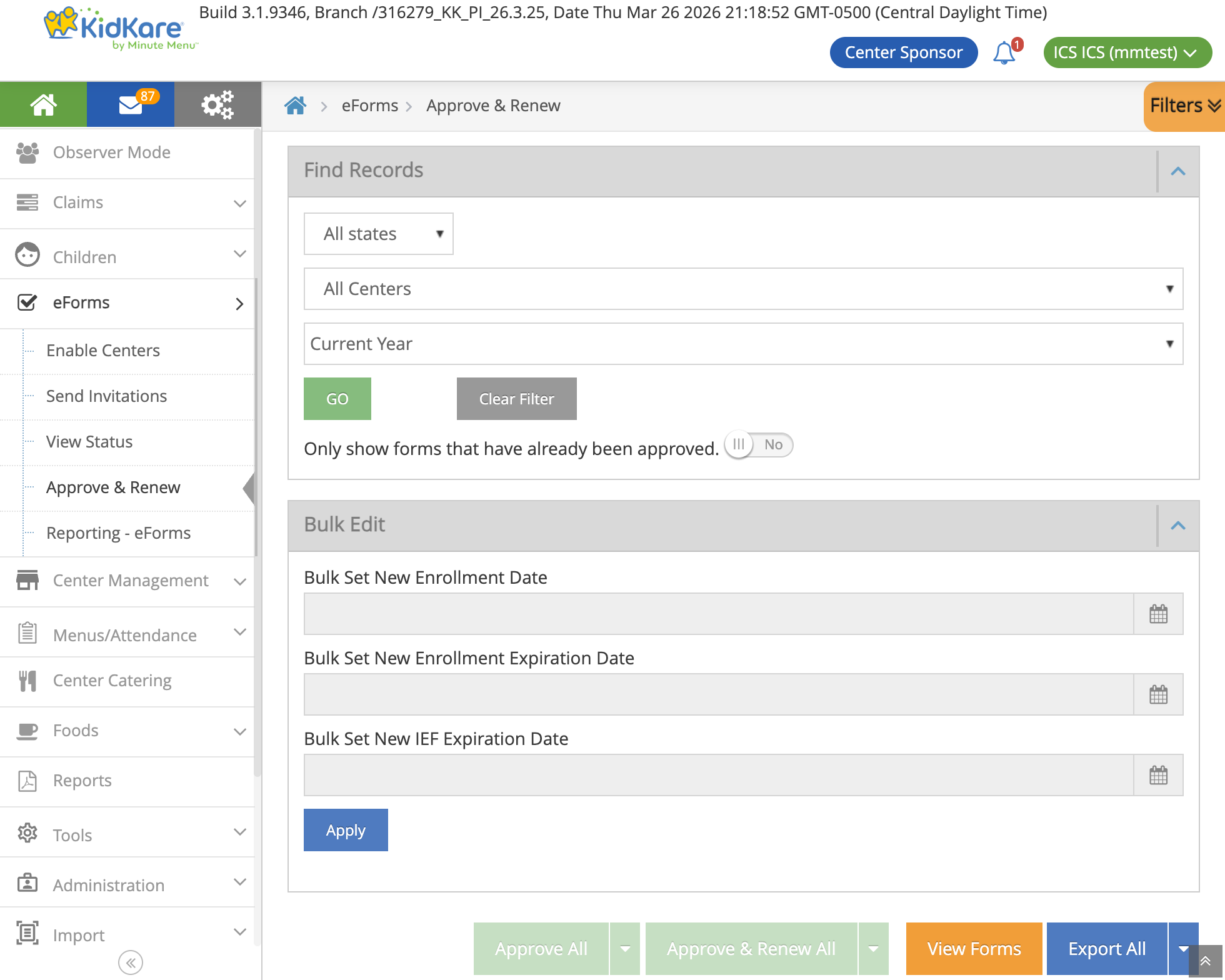

Sponsor Approve & Renew — bulk approval, renewal dates, and export

Form State Machine

Each form (EF and IEF) has its own independent state machine, implemented using the Stateless library.

graph LR
    NS["Not Started"] -->|Open| IP["In Progress"]
    IP -->|Sign| NA["Needs Approval"]
    IP -->|Parent Submit| PS["Parent Submitted"]
    NA -->|Site Submit| SS["Site Submitted"]
    SS -->|Sponsor Approve| SA["Sponsor Approved"]
    PS -->|Sponsor Approve| SA
    SA -->|Renew| RN["Renewed"]
    RN -->|Report Ready| DEL["Deleted<br/>(hard delete)"]

    NA -->|Send Back| IP
    SS -->|Send Back| IP
    PS -->|Send Back| IP

    NS -->|Cancel| CAN["Canceled"]
    IP -->|Cancel| CAN
    NA -->|Cancel| CAN
    CAN -->|Auto-delete| DEL

    NS -->|Manual Complete| MC["Manually Completed"]
    IP -->|Manual Complete| MC

    style NS fill:#fff9c4
    style IP fill:#bbdefb
    style NA fill:#ffe0b2
    style SS fill:#c8e6c9
    style PS fill:#c8e6c9
    style SA fill:#a5d6a7
    style RN fill:#80cbc4
    style DEL fill:#e0e0e0
    style CAN fill:#ffcdd2
    style MC fill:#d7ccc8

Status	Code	Meaning
Not Started	1	Invitation sent but form not yet opened
In Progress	2	Form opened and being filled
Canceled	3	Invitation voided (auto-triggers deletion)
Site Submitted	4	Site approved (CX: center, HX: provider); awaiting sponsor
Manually Completed	5	Staff marked complete without parent submission
Needs Approval	6	Parent/site signed; awaiting site review
Sponsor Approved	7	Sponsor approved; ready for renewal
Renewed	8	Enrollment/expiration dates set
Awaiting Siblings	9	Waiting for sibling forms to reach same state (combined forms)
Awaiting Reports	10	Waiting for PDF report generation
Parent Submitted	11	Parent submitted directly (no site approval needed)
Deleted	-1	Hard-deleted from database (terminal state)

View Status Actions

Action	Available When	What It Does
Open Online Form	Not Started, In Progress	Opens DOB dialog → enters form wizard
Review & Approve	Needs Approval	Site reviews and approves submitted form
Resend Invitation	Not Started, In Progress, Canceled	Re-sends email to guardian
Cancel Invitation	Not Started, In Progress, Needs Approval, Site/Parent Submitted	Voids the form; triggers auto-deletion
Manually Completed	Not Started, In Progress	Staff marks form complete without parent submission

When a child has both EF and IEF, action buttons only enable if the action is valid for all selected forms.

Business Rules

Form Submission

Both EF and IEF require typed full name + drawn electronic signature
Submission payload is base64-encoded JSON wrapped in {"isForMM": true, "dataForMM": "<base64>"}

Infant Detection

A child is an infant if age < 12 months
Infants get an additional form step: formula brand, breastmilk provision, solid food introduction

IEF Income Logic

graph TD
    START["IEF Submitted"] --> GOV{"Any gov program?<br/>(SNAP/TANF/FDPIR)"}
    GOV -->|Yes| STATE{"State = OK?"}
    GOV -->|No| REFUSE{"Refuses to<br/>disclose income?"}

    STATE -->|"OK + OE-issued"| CLEAR["Clear household<br/>members + SSN"]
    STATE -->|"OK + not OE-issued"| REFUSE
    STATE -->|"Other state"| CLEAR

    REFUSE -->|Yes| CLEAR2["Clear household<br/>members + SSN"]
    REFUSE -->|No| FILTER["Keep only incomes<br/>with amount > 0"]

    CLEAR --> SAVE["Save to database"]
    CLEAR2 --> SAVE
    FILTER --> SAVE

SNAP, TANF, or FDPIR participation = categorical eligibility (income not needed)
Oklahoma exception: income clearing only applies when OE-issued programs are enabled
If parent refuses to disclose, household members and SSN are cleared
Only income entries with amount > 0 and frequency != "No Income" are saved
Previous year's household members can be loaded for prefill via GET /enrollment/householdMembers?loadPreviousYear=true
SSN: only last 4 digits collected; not required when a government program case number is provided
HX + North Carolina: "Retirement" income type converts to "Pension" for legacy compatibility

SNAP/TANF Validation

Case numbers are validated against the National Data Service (NDS). Behavior is configurable per site via OEAllowedRequiredSnapStanf:

Warn: validation fails but submission proceeds
Error: validation fails and blocks submission

Expiration Alerts

Expiring: form expires within 30 days
Expired: form expiration date is before today
Dashboard surfaces these alerts in dedicated widgets

Sibling IEF Sync (317778)

All children in a family with the same guardian must have the same FRP designation (Free/Reduced/Paid). This is a CACFP compliance requirement.

How It Works

The system detects siblings (same guardian) and ensures FRP consistency:

At enrollment — When a parent opens the IEF, the system checks for siblings. If found, the parent chooses to reuse an existing sibling's IEF or fill a new one.
At renewal — Stored procedures copy FRP data to all siblings automatically after the form is renewed.
From oversight tab (CX only) — Staff can manually trigger sibling sync from the child detail page.

graph TD
    START["User opens IEF<br/>for a child"] --> DETECT["System detects<br/>siblings with same guardian"]

    DETECT --> CHECK{"Siblings with<br/>valid IEF found?"}

    CHECK -->|"No siblings"| NORMAL["Normal IEF flow"]

    CHECK -->|"Siblings found"| CHOOSE["Choose IEF screen"]
    CHOOSE -->|"Use existing"| PREFILL["Prefill from sibling<br/>(read-only income)"]
    CHOOSE -->|"New form"| NEW["Fill new IEF<br/>→ sync to all siblings"]

    PREFILL --> SUBMIT["Submit IEF"]
    NEW --> SUBMIT

    SUBMIT --> RENEW["At renewal"]
    RENEW --> SP["Stored procedure copies<br/>FRP codes to all siblings"]

    style CHOOSE fill:#fff3e0
    style SP fill:#c8e6c9

CX vs HX Sibling Detection

System	How siblings are matched	Why different
CX	Direct `guardian_id` match in same `client_id`	CX has a guardian table with foreign keys
HX	Guardian name + address + zip code match	HX stores guardians separately without direct FK to children

Eligible children for sibling matching:

Active (status 238) or Enrolled (status 239)
Recently withdrawn (status 241, within 24 hours)
Has valid IEF with future expiration date

What Gets Synced

Field	Description
`frb_category_code`	FRP category (Free, Reduced, Paid)
`frb_eligibility_type_code`	Eligibility type
`benefits_program_case_number`	Government program case number
`is_issued_of_oklahoma`	Oklahoma-specific flag
`ief_expiration_date`	IEF expiration (oversight tab only)
`ief_effective_date`	IEF effective date (oversight tab only)
`CHILD_INCOME` records	Full income form data (32+ columns)
`CHILD_INCOME_HOUSEHOLD` records	All household members with 5 income sources each

Sibling Coordination for Combined Forms

Some states (GA, LA) use combined IEF forms shared across siblings. When forms are combined:

All siblings must reach Renewed before any can proceed to report generation
Forms wait in Awaiting Siblings status until all siblings catch up
IEF deletion checks for other assignments before removing (shared across siblings)

Data Model

Form Storage (MMADMIN_EFORM, SQL Server — shared by CX and HX)

┌──────────────────────────┐     ┌───────────────────────────┐
│ KK_EnrollmentForm        │     │ KK_IncomeEligibilityForm  │
│──────────────────────────│     │───────────────────────────│
│ id (PK)                  │     │ id (PK)                   │
│ status                   │     │ status                    │
│ form_data (JSON)         │     │ form_data (JSON)          │
│ record_status_code       │     │ IsUpdateSibling (BIT)     │
│ create_date_time         │     │ record_status_code        │
│ mod_date_time            │     │ create_date_time          │
└──────────┬───────────────┘     └───────────┬──────────────┘
           │                                  │
           └──────────┬───────────────────────┘
                      │ (referenced by)
          ┌───────────┴───────────┐
          ▼                       ▼
┌──────────────────────┐  ┌──────────────────────┐
│ KK_EnrollAssignmentCx│  │ KK_EnrollAssignmentHx│
│ (CX assignments)     │  │ (HX assignments)     │
│──────────────────────│  │──────────────────────│
│ ClientId, CenterId   │  │ SponsorId, ProviderId│
│ ChildId, GuardianId  │  │ ChildId, GuardianId  │
│ EnrollmentFormId(FK) │  │ EnrollmentFormId(FK) │
│ IncomeEligFormId(FK) │  │ IncomeEligFormId(FK) │
└──────────────────────┘  └──────────────────────┘

Child Data (separate per system)

Table	Database	System	Content
`CHILD`	CXADMIN	CX	Child master record, FRP codes, IEF dates, benefits
`CHILD_INCOME`	CXADMIN	CX	Income form data (32+ columns per signature date)
`CHILD_INCOME_HOUSEHOLD`	CXADMIN	CX	Household members with 5 income sources each
`CHILD_INCOME`	MMADMIN_XXX	HX	Same structure as CX, stored per sponsor
`CHILD_INCOME_HOUSEHOLD`	MMADMIN_XXX	HX	Same structure as CX

Invitation Entity (MySQL, KidsContext — shared)

The EnrollmentInvitation entity is stored in MySQL and tracks:

Invitation metadata (token, status, type, US state code)
Guardian and child info (name, DOB, email)
OriginalData / CurrentData (JSON snapshots of form data)
SystemCode — CX or HX, determines which business logic path to use

Email Notifications

Trigger	Template	Condition
Invitation created or resent	ParentInvitation	Guardian email exists
Form sent back for revision	ParentInvitationRevision	Guardian email exists
Form signed (→ Needs Approval)	ParentSignForm	Guardian email exists AND `OESendApprovalEmail` setting enabled
Sponsor approves	ParentInvitationApprove	Guardian email exists

Emails support English, Spanish, and Russian. Bulk resend groups invitations by email to avoid duplicates. An SSO user is auto-created for the parent if one does not exist.

Key Source Files

Backend (KK)

File	Purpose
`KidKare.Service/Controllers/EnrollmentController.cs`	API controller — all enrollment endpoints
`KidKare.Bll/Enrollment/EnrollmentBll.cs`	Base business logic — CRUD, income retrieval, sibling detection
`KidKare.Bll/Enrollment/CxEnrollmentBll.cs`	CX-specific logic — CX sibling query, CX renewal with sync
`KidKare.Bll/Enrollment/HxEnrollmentBll.cs`	HX-specific logic — HX guardian matching, HX renewal with sync
`KidKare.Bll/Enrollment/Processor/InvitationsProcessor.cs`	Invitation creation with existing IEF reuse for siblings
`KidKare.Bll/Enrollment/EnrollmentStateMachine/EnrollmentStateMachineInternal.cs`	Stateless state machine — transitions + side effects
`KidKare.Bll/Centers/Child/ChildBll.cs`	Child profile, sibling eligibility, copy-to-siblings API
`KidKare.Web/app/common/services/enrollment-service/enrollment-service.js`	Frontend wizard navigation, sibling routing
`KidKare.Web/app/states/child-enrollment/ief-forms/choose-ief/`	Choose IEF screen (new in 317778)
`KidKare.Web/app/states/child-enrollment/ief-forms/household/ief-household-controller.js`	Household form — handles prefilled read-only mode

CX System (Centers-CX)

File	Purpose
`MinuteMenu.Centers.CXWeb/Services/Enrollments/ChildEnrollmentService.cs`	Child enrollment + guardian management
`MinuteMenu.Centers.CXWeb/Services/Enrollments/IefService.cs`	IEF save/retrieve
`MinuteMenu.Centers.CXWeb/Services/Enrollments/IefAdapter.cs`	IEF data transformation + FamilyService integration

Database (MinuteMenu.Database)

File	Purpose
`CXADMIN/Stored Procedures/sp_copy_childInfo_to_siblings.sql`	Copy IEF + income data to CX siblings
`MMADMIN_XXX/Stored Procedures/sp_copy_hx_childInfo_to_siblings.sql`	Copy IEF + income data to HX siblings
`CXADMIN/Stored Procedures/initializeIEFEffectiveAndIEFSponsorApproveWithChildIds.sql`	IEF date initialization with sibling propagation
`MMADMIN_EFORM/Updates/317347_IsUpdateSibling_for_IEF.sql`	Added `IsUpdateSibling` column to `KK_IncomeEligibilityForm`

API Endpoints

Endpoint	Method	Purpose
`GET /enrollment/invitation`	GET	Load form for filling/review (with sibling detection)
`PUT /enrollment/enrollmentForm`	PUT	Submit Enrollment Form
`PUT /enrollment/ief`	PUT	Submit Income Eligibility Form
`POST /enrollment/firstTimeEnrollment`	POST	Create child + invitation
`POST /enrollment/approveInvitation`	POST	Site approval
`POST /enrollment/cancelInvitation`	POST	Cancel with sibling option
`POST /enrollment/validateSnapTanfNumber`	POST	SNAP/TANF case number validation via NDS
`GET /enrollment/householdMembers`	GET	Load household members (optionally from prior year)
`GET /enrollment/getChildIncome`	GET	Retrieve sibling's income data for prefilling
`POST /child/copyChildInfoToSiblings`	POST	Copy IEF data to siblings (oversight tab)
`GET /enrollment/combinedinvitationsList`	GET	Paginated invitation list for View Status
`POST /enrollment/sponsor/renewEnrollments`	POST	Sponsor triggers renewal processing

EForm Enrollment Flow (detailed) — Deeper dive into state machine transitions, deletion mechanism, and stored procedure logic
